> Audi

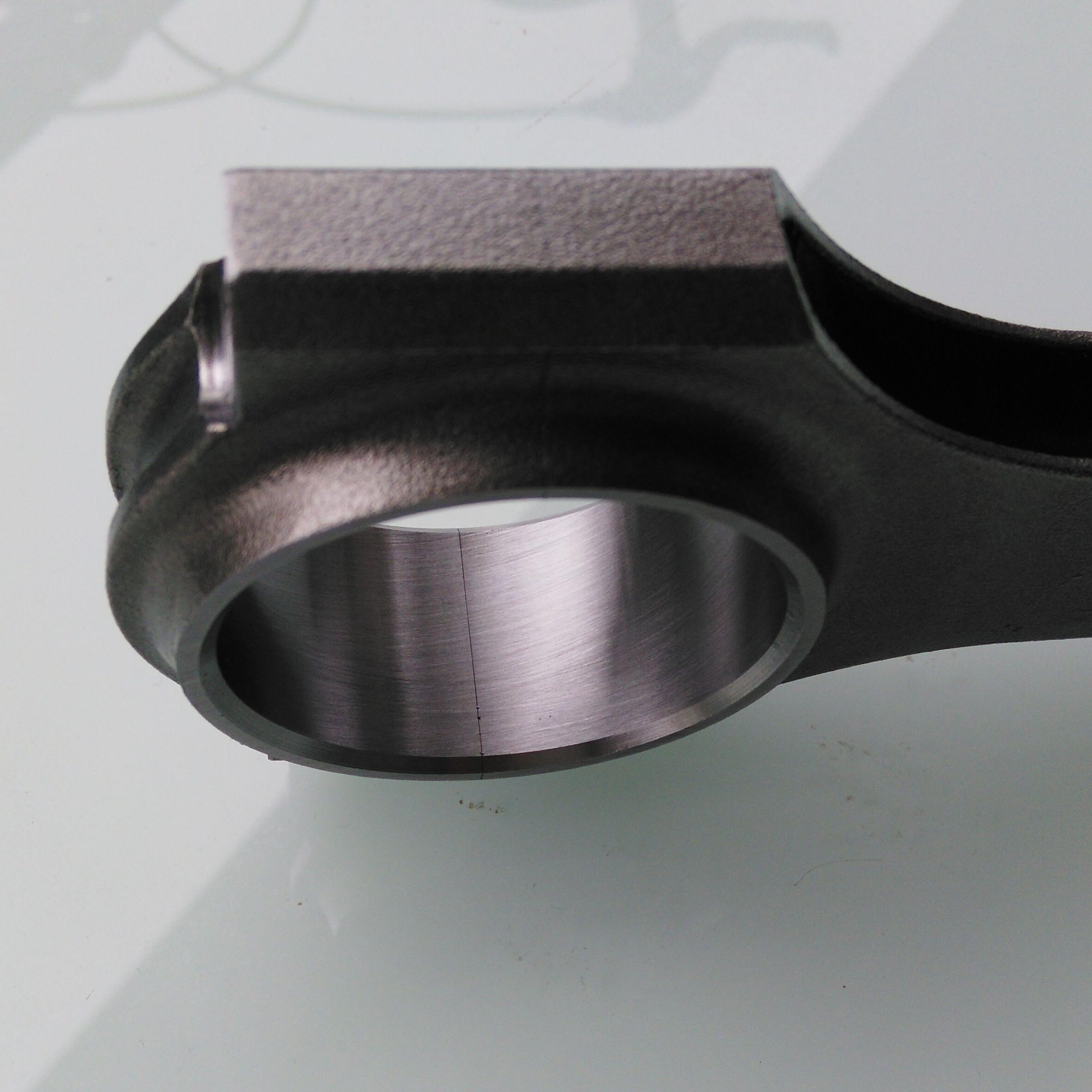

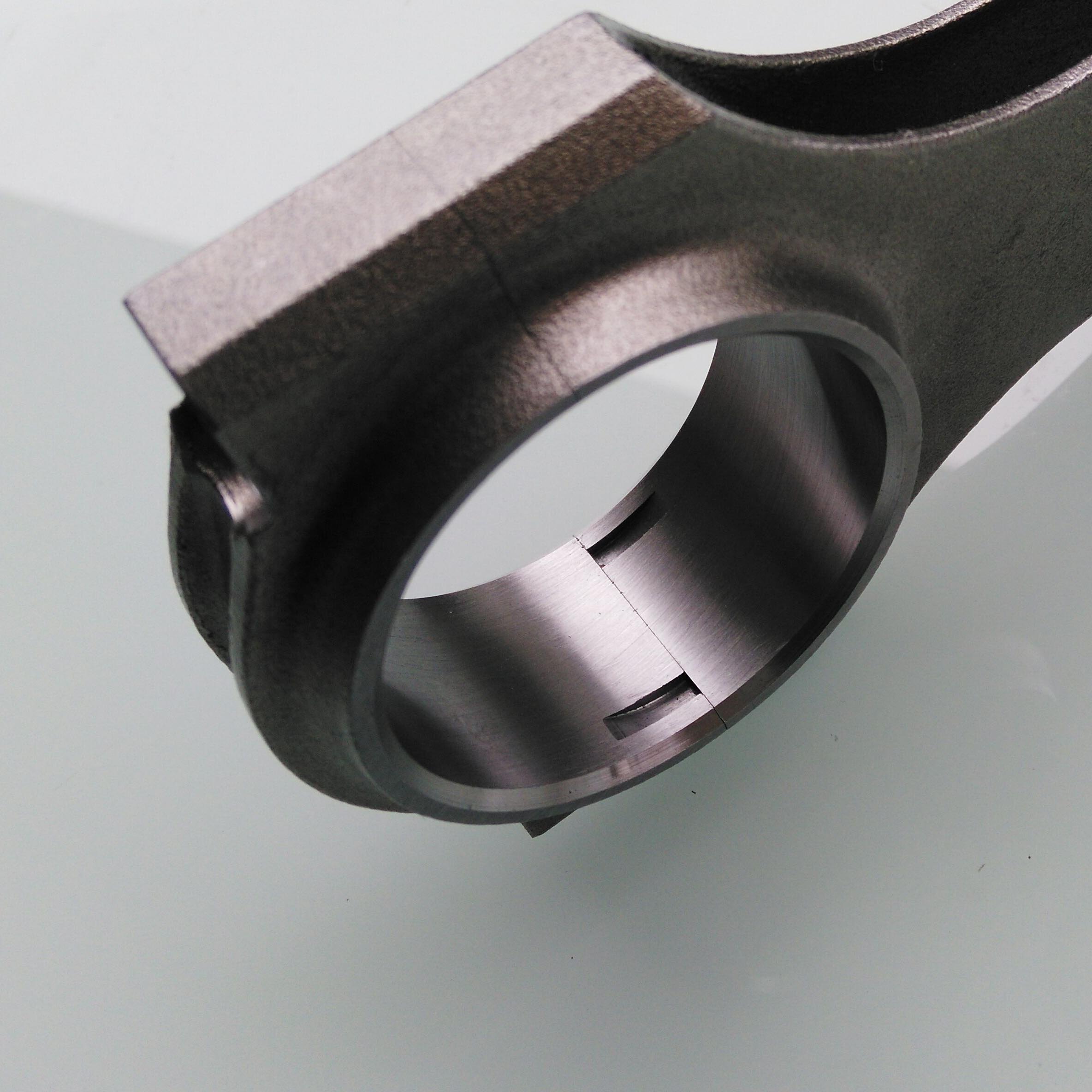

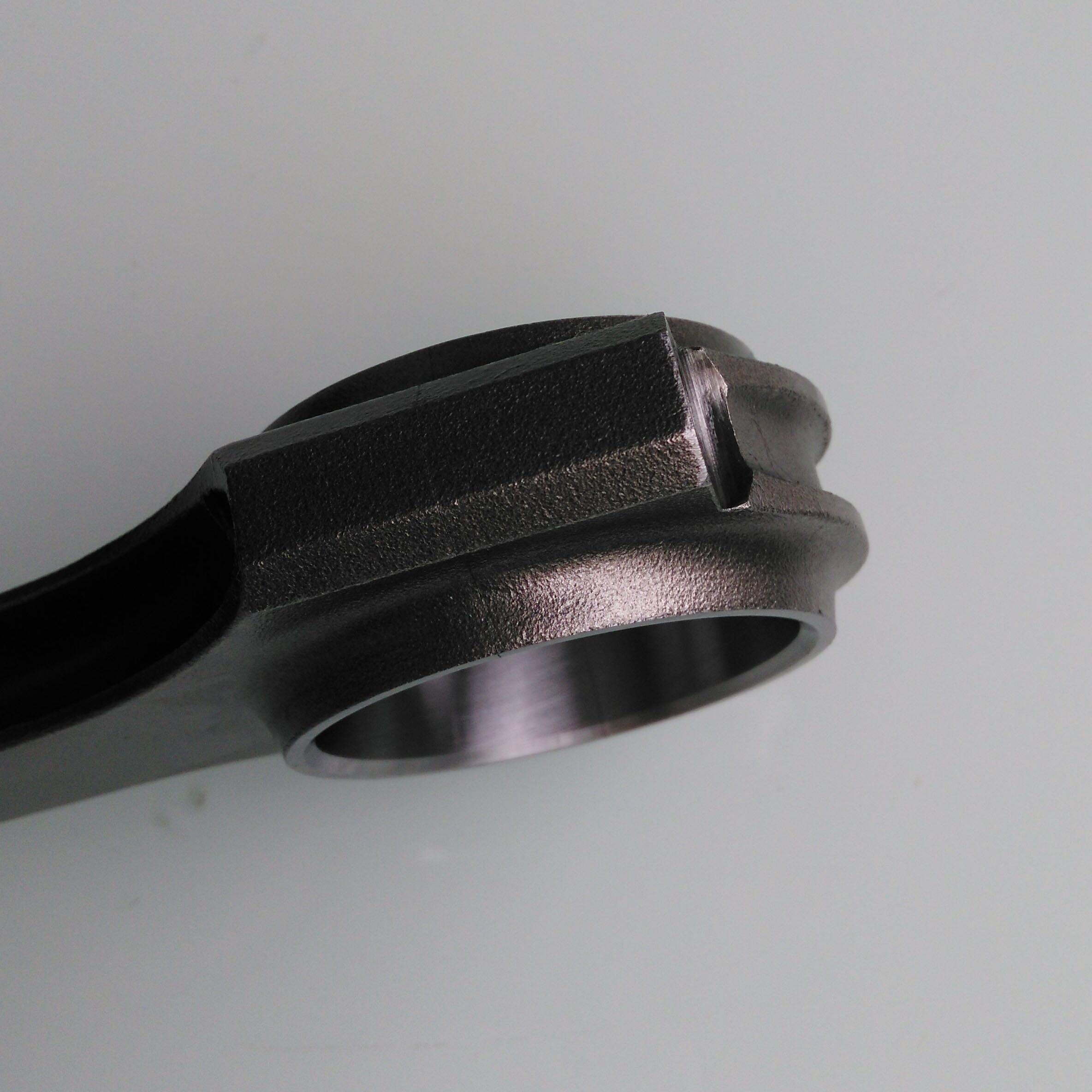

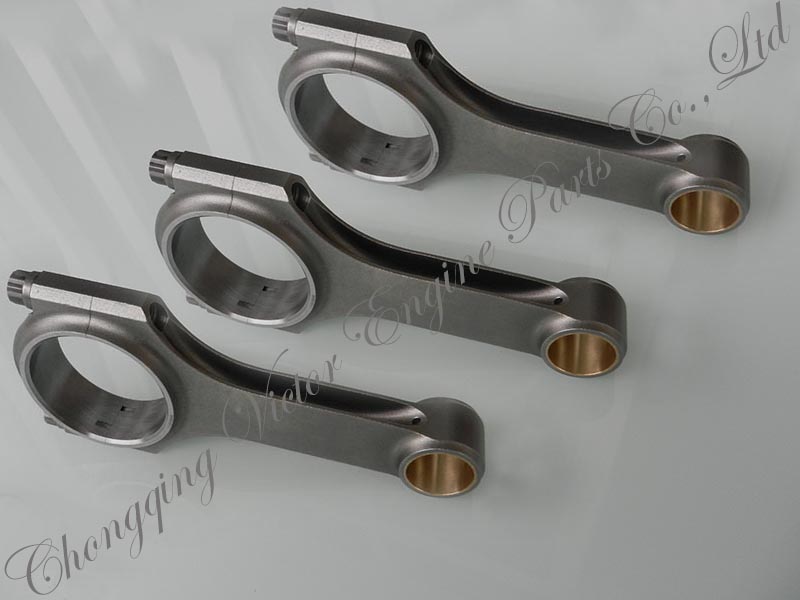

AUDI 1.8L 14007-4 Turbo connecting rods conrods
- connecting rod
- AUDI R8
- H-beam
- 4340 forged steel
- Product description: AUDI 1.8L 14007-4 Turbo H-beam forged connecting rods conrods
Product introduction
Key Product Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,

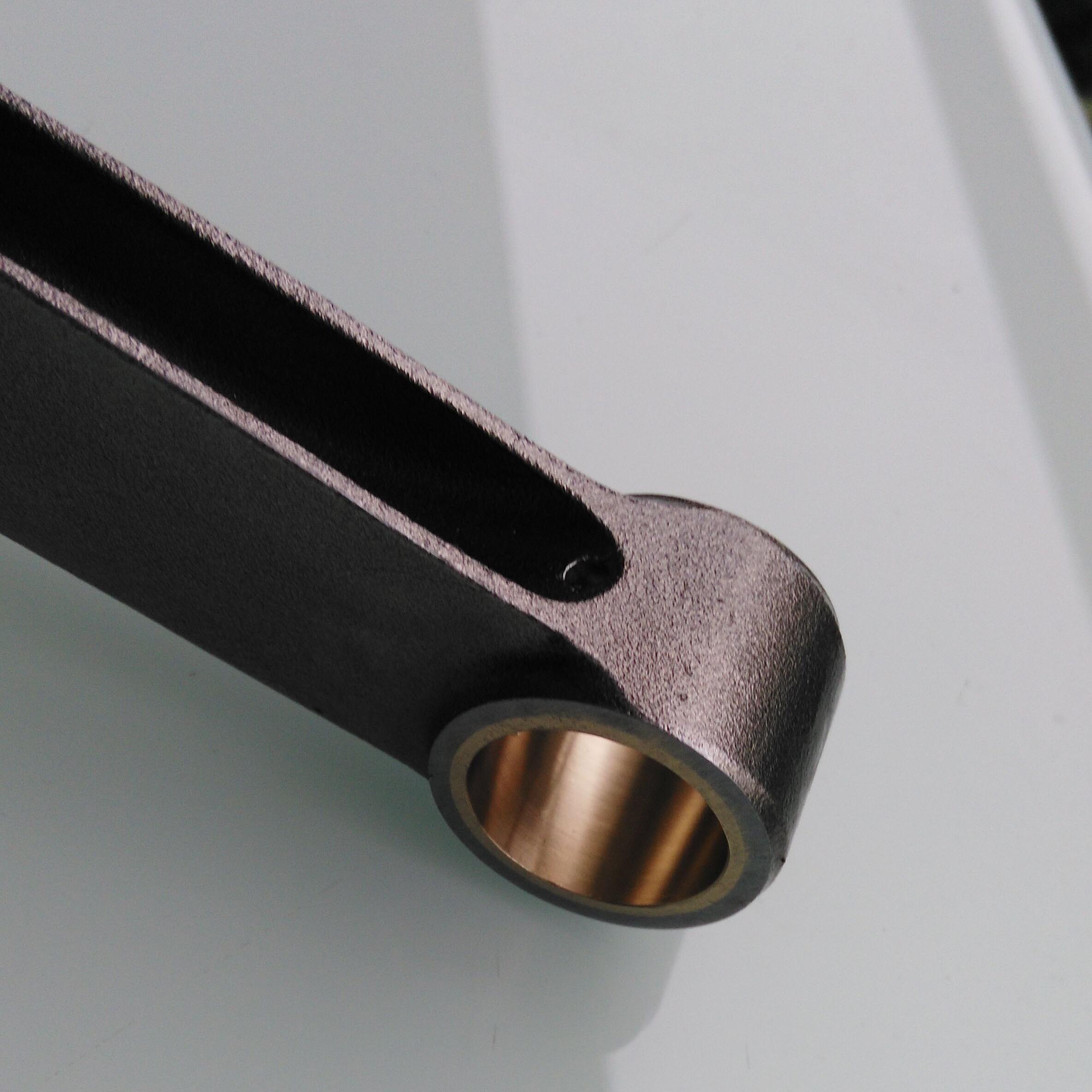

9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.

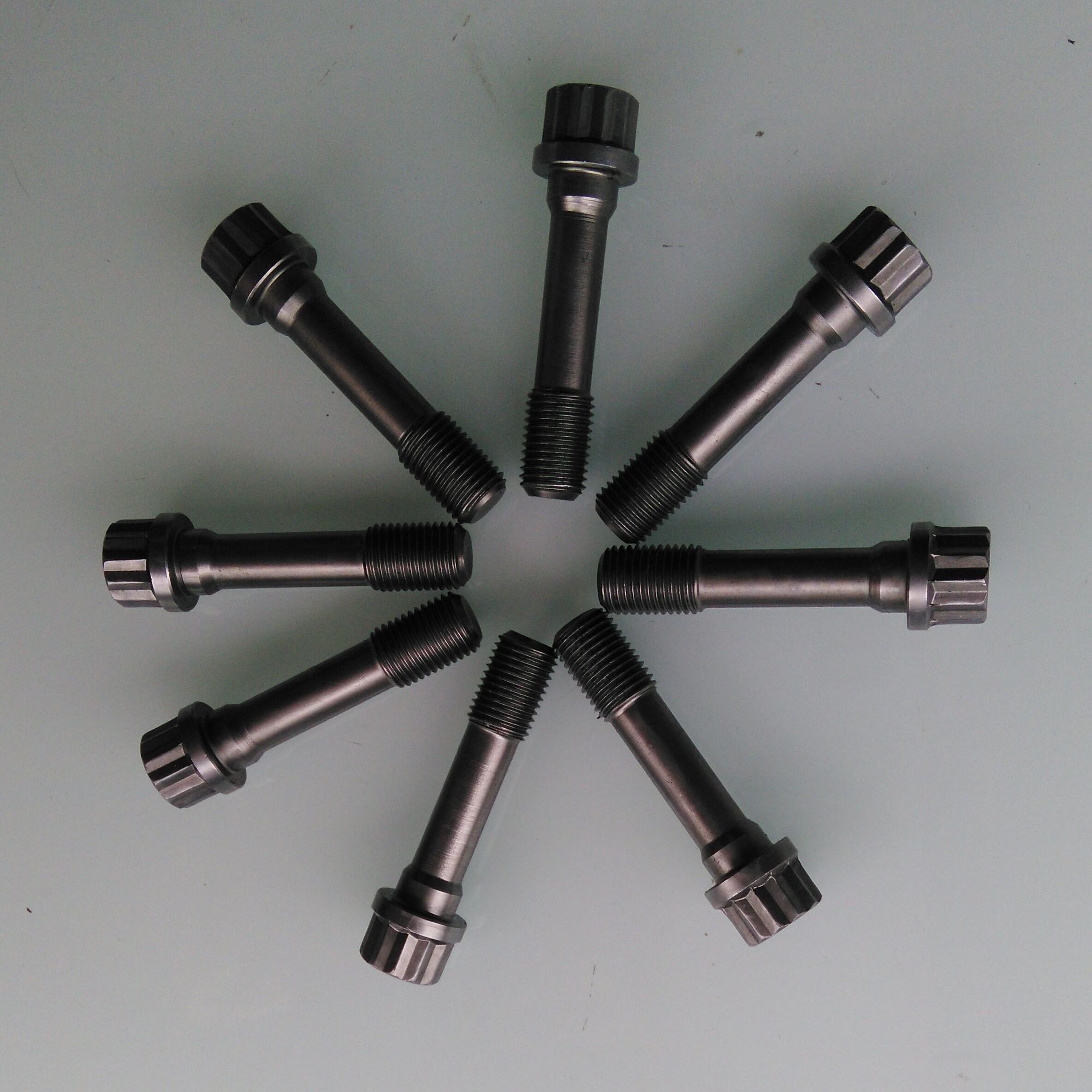

11.Bolts tesile strength
| Application | for AUDI 1.8L Turbo | ||||||
| Style number | 14007-4 FVW114 | ||||||
| Beam style | H-beam | ||||||
| Material | Forged 4340 steel | ||||||
| Tolerance | Sets weight match +/-1 gram | ||||||
| Quantity | 1 set of 6 pieces | ||||||
| Warranty | 1 year | ||||||
| Specifications | |||||||
| Center to center length | 143.99mm | ||||||
| Big end diameter | 50.60mm | ||||||
| Small end diameter | 20.02mm | ||||||
| Big end width | 24.89mm | ||||||
| Small end width | 24.89mm | ||||||
| Note: please double check dimensions with seller before purchase | |||||||
