Datsun L6 KA24DE connecting rods conrods
- Materials is high tensile 4340 forged steel
- Each rod is multi-stage heat-treated
- 100 percent machined
- Is customized

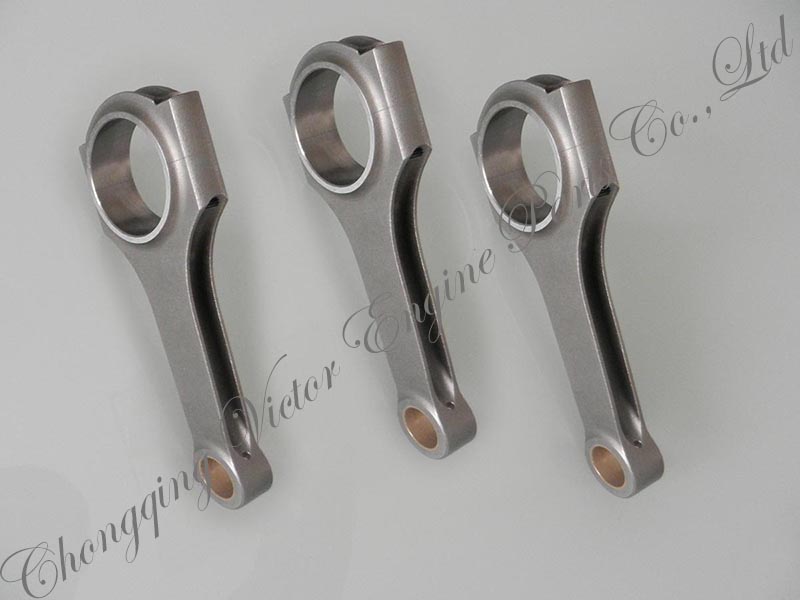

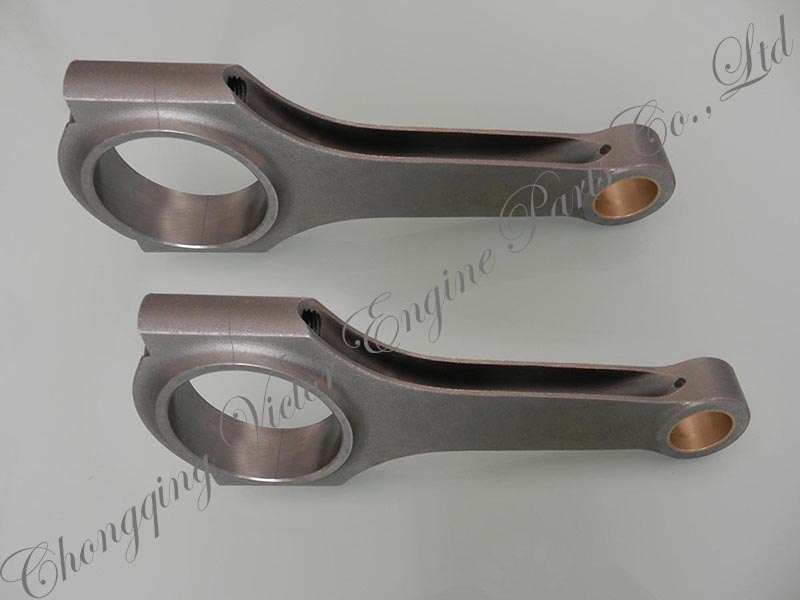

- Product description: Datsun L6 KA24DE H-beam forged connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Datsun-001 | KA24DE 6.496" | 4 | 165 | 53.01 | 21 | 24.77 | 24.77 | 3/8" |
Datsun-002 | L6 | 6 | 133 | 53 | 21 | 26.8 | 23.9 | 3/8" |
Datsun-003 | L6 | 6 | 130.3 | 53 | 21 | 26.8 | 23.9 | 3/8" |
Datsun-004 | L6 CR-133 | 6 | 133 | 52.997 | 21 | 26.8 | 23.9 | 3/8" |
Datsun-005 | L6 | 4 | 130.15 | 53 | 21.02 | 26.8 | 23.9 | 3/8" |
Datsun-006 | L6 | 4 | 130.2 | 53 | 21.02 | 26.8 | 23.85 | 3/8" |
Datsun-007 | Datsun | 4 | 137 | 53 | 21 | 26.8 | 23.9 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
