Opel C20LET Z20LET C20XE 2.0L connecting rods conrods
- Opel connecting rod
- H-beam
- 4340 forged steel
- Is customized

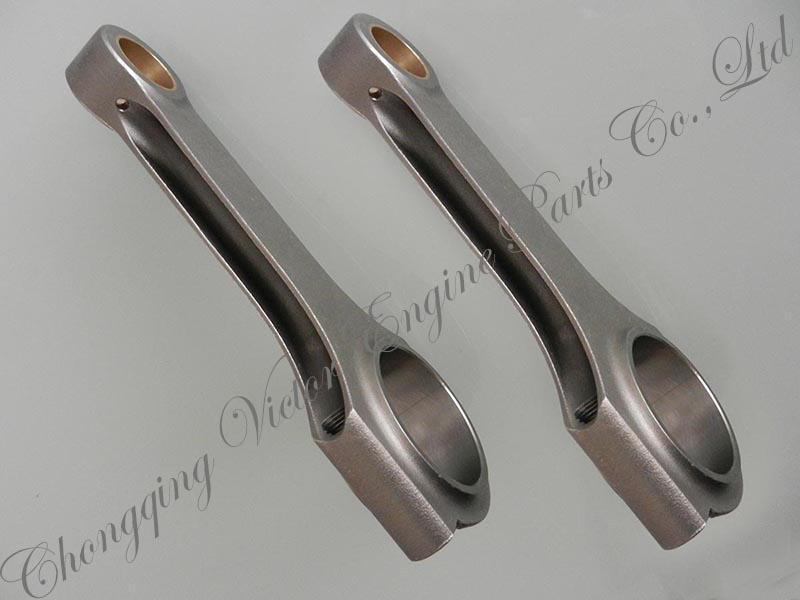

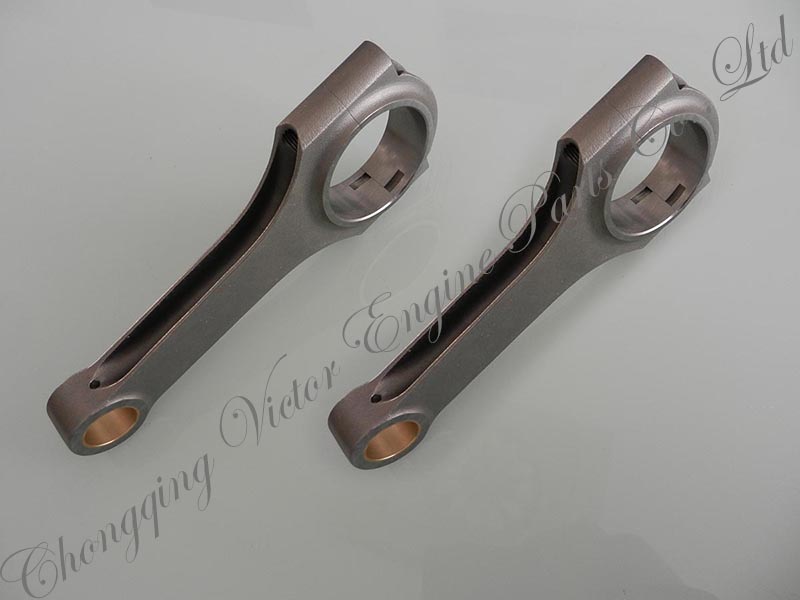

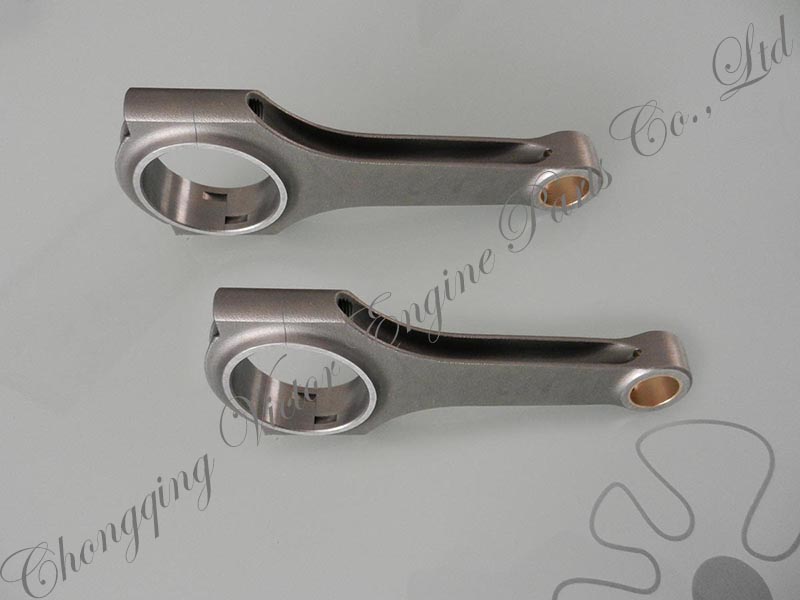

- Product description: Opel C20LET Z20LET C20XE 2.0L connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
<
Application | For Opel C20LET Z20LET C20XE 2.0L | ||||||
Style number | OPE068 | ||||||
Beam style | H-beam | ||||||
Material | Forged 4340 steel | ||||||
Tolerance | Sets weight match +/-1 gram | ||||||
Quantity | 1 set of 4 pieces | ||||||
Warranty | 1 year | ||||||
Specifications | |||||||
Center to center length | 143mm | ||||||
Big end diameter | 52mm | ||||||
Small end diameter | 21mm | ||||||
Big end width | 26.3mm | ||||||
Small end width | 21.9mm | ||||||
Note: please double check dimensions with seller before purchase |
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case
Delivery Detail:30days
