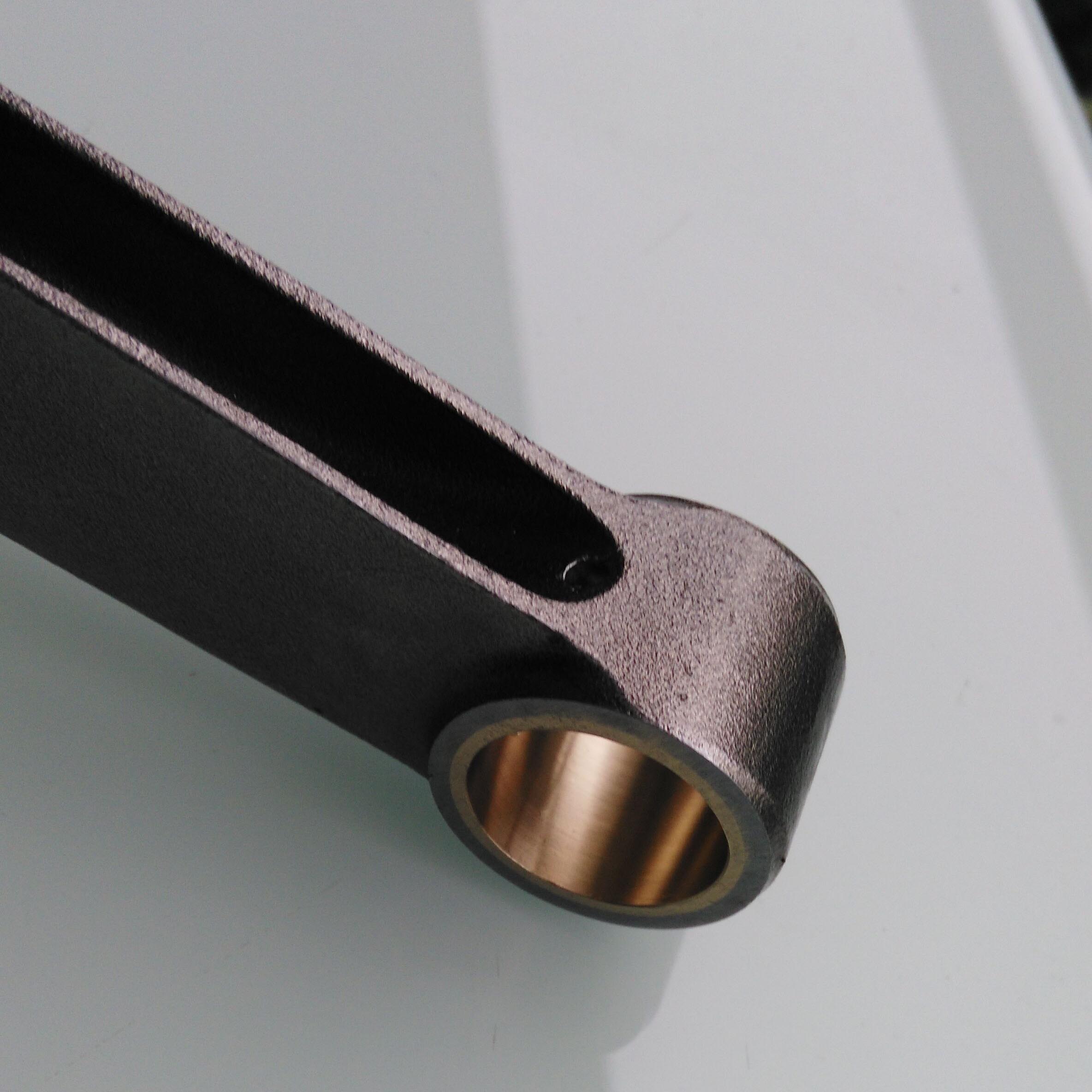

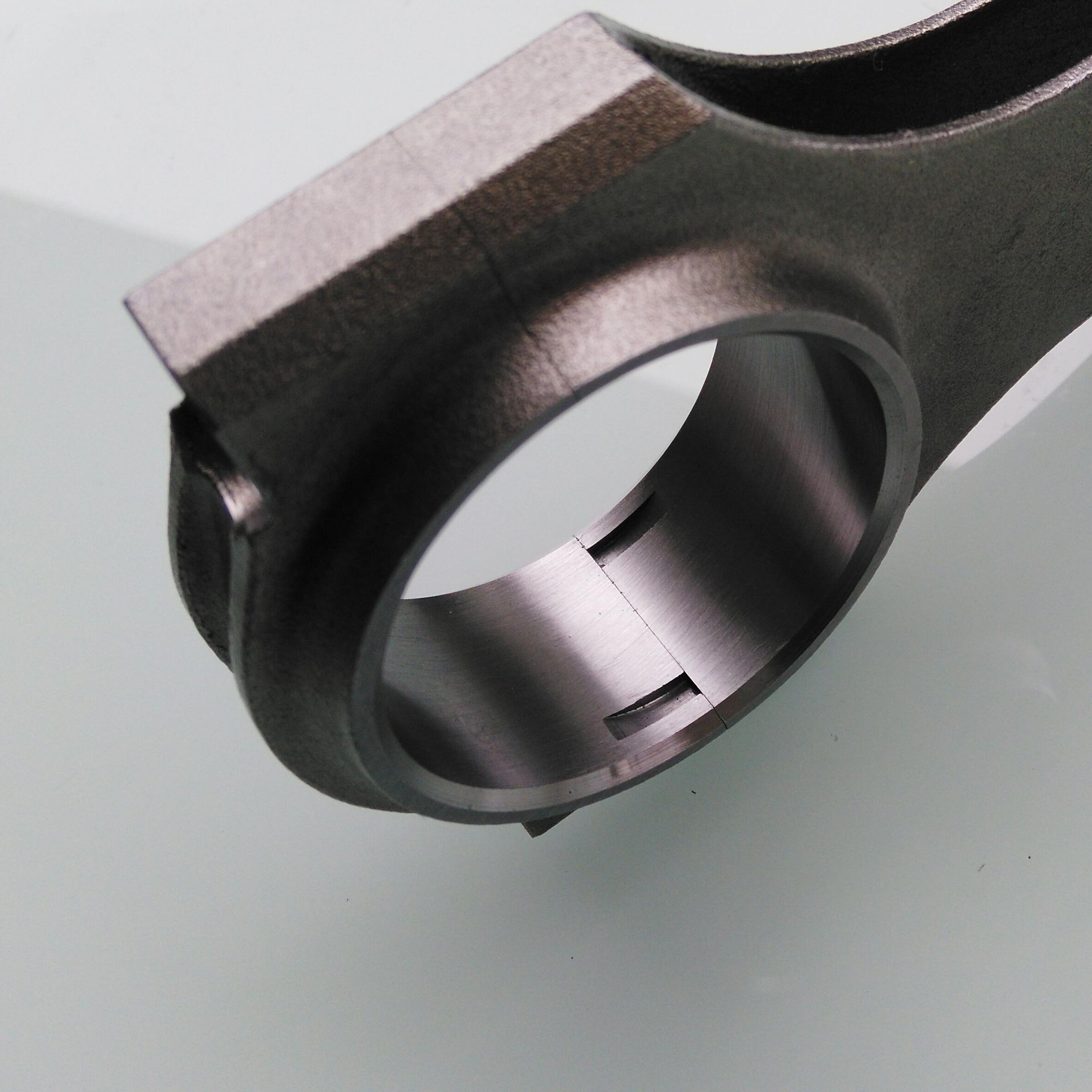

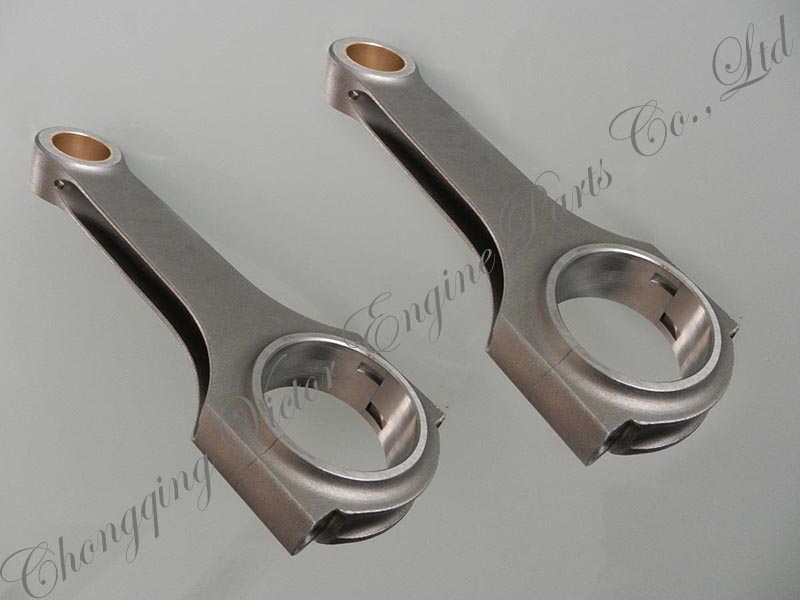

VW AUDI RS4 VR6 H-beam racing connecting rods conrods
- Materials is high tensile 4340 forged steel
- Each rod is multi-stage heat-treated
- 100 percent machined,
- Is customized
- Product description: VW AUDI RS4 VR6 H-beam racing connecting rods conrods
Product introduction
Product Key Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength with 228,500 psi.
Product main measurements
Style | Description | CYL | CC(mm) | B/E bore(mm) | B/E width(mm) | S/E bore(mm) | S/E width(mm) | Weight(g) |
for AUDI A6 RS4 2.8L | 6 | 154.00 | 56.81 | 20.12 | 20.02 | 21.87 | 549 | |
VW084 | for AUDI 2.8 RS4/AZR | 6 | 154.00 | 56.81 | 20.12 | 21.02 | 21.87 | 581 |
VW085 | for AUDI 2.7L | 6 | 154.00 | 57.61 | 20.12 | 21.01 | 21.84 | 556 |
VW086 | G60 | 4 | 135.99 | 50.61 | 24.89 | 22.01 | 24.89 | 543 |
VW087 | for GOLF 1.3L EURO | 4 | 122.02 | 45.01 | 23.88 | 20.02 | 23.88 | 507 |
VW088 | for GOLF (TURBO)DIESEL 1.6L | 4 | 135.99 | 50.61 | 24.89 | 24.00 | 24.89 | 610 |
VW089 | GTI, 19MM TAPERED END | 5 | 144.02 | 50.61 | 21.84 | 19.00 | 19.99 | 574 |
VW090 | GTI 1.8L | 4 | 144.02 | 50.61 | 24.89 | 20.00 | 24.89 | 575 |
VW091 | GTI LWT 1.8-2.0L | 4 | 144.02 | 50.61 | 24.89 | 19.99 | 24.89 | 502 |
VW092 | GTI HD TNM | 4 | 144.02 | 50.61 | 24.89 | 20.02 | 24.89 | 450 |
VW093 | GTI EXTREME DUTY | 4 | 144.02 | 50.61 | 24.89 | 20.01 | 24.89 | 684 |
VW094 | GTI EXTREME DUTY | 4 | 144.02 | 50.61 | 24.89 | 19.99 | 24.89 | 684 |
VW095 | JETTA ABA | 4 | 159.00 | 50.61 | 24.89 | 21.01 | 24.89 | 610 |
VW096 | POLO AFH 1.4L | 4 | 138.00 | 50.61 | 19.91 | 16.99 | 19.91 | |
VW097 | 1.6 NEW | 4 | 138.00 | 50.61 | 19.96 | 16.99 | 19.96 | |
VW098 | VR6 R32 | 6 | 164.08 | 56.81 | 19.86 | 20.02 | 20.32 | 592 |
VW099 | RABBIT 1.6L | 4 | 135.99 | 49.01 | 24.89 | 22.00 | 24.89 | 563 |
VW100 | 1.9L TDI | 4 | 144.00 | 50.60 | 24.89 | 26.01 | 25.02 | 657 |
VW101 | 1.4L TFSI | 4 | 144.02 | 50.61 | 19.76 | 19.00 | 20.02 | 474 |
VW102 | 2.0L TSI | 4 | 144.02 | 50.61 | 21.89 | 21.01 | 586 | |
VW103 |
VR6 |
6 | 164.08 | 56.81 | 19.86 | 20.01 | 20.32 |
575 |
