VW G60 H-beam connecting rods conrods
- H-beam racing connecting rods
- Forged 4340 steel
- VW/AUDI G60 engine
- Customized connecting rods
- Product description: VW G60 H-beam connecting rods conrods
Product introduction
Product Key Feature
1.Materials is high tensile 4340 forged steel
2.Each rod is multi-stage heat-treated.
3.X-rayed,
4.Sonic-tested
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,

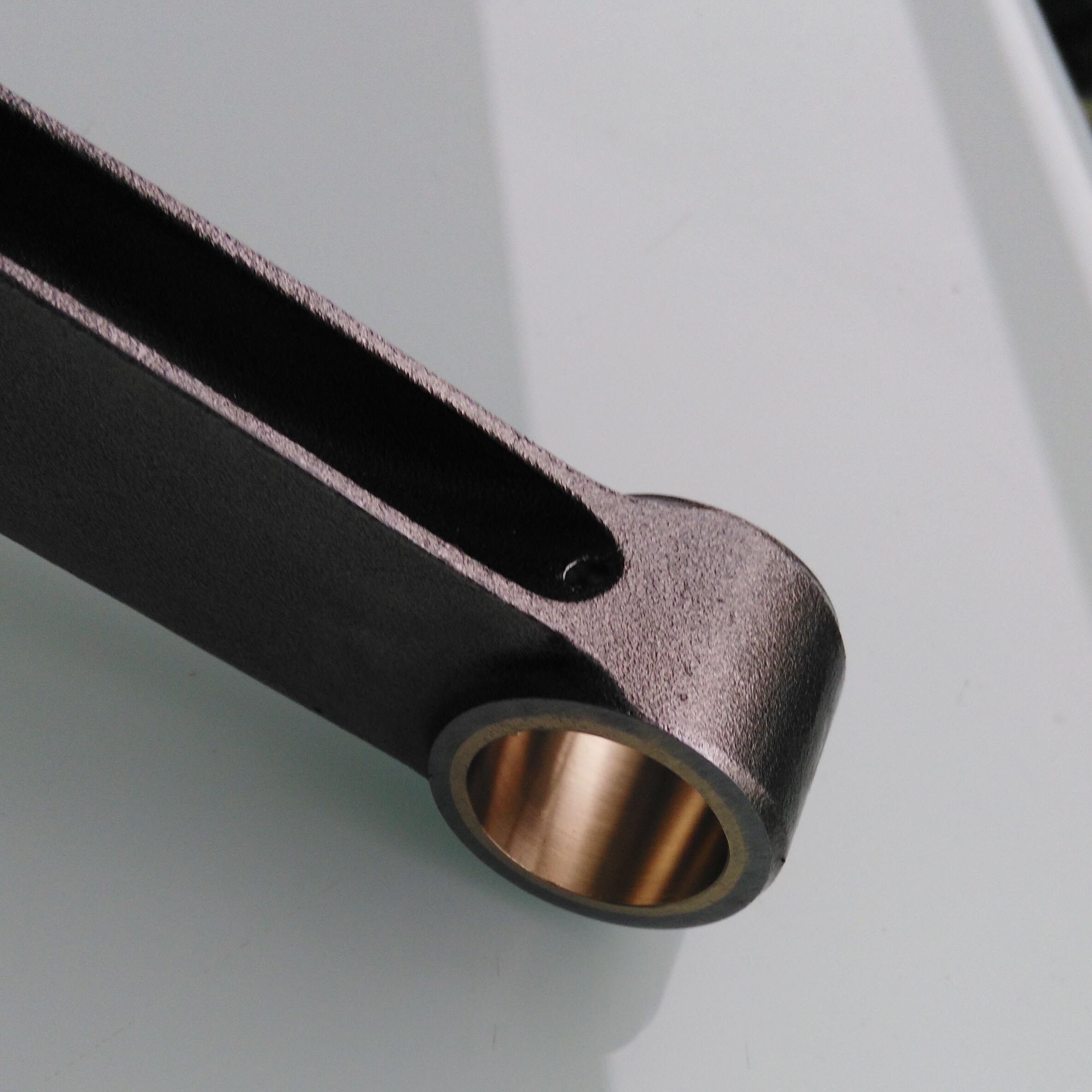

9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38

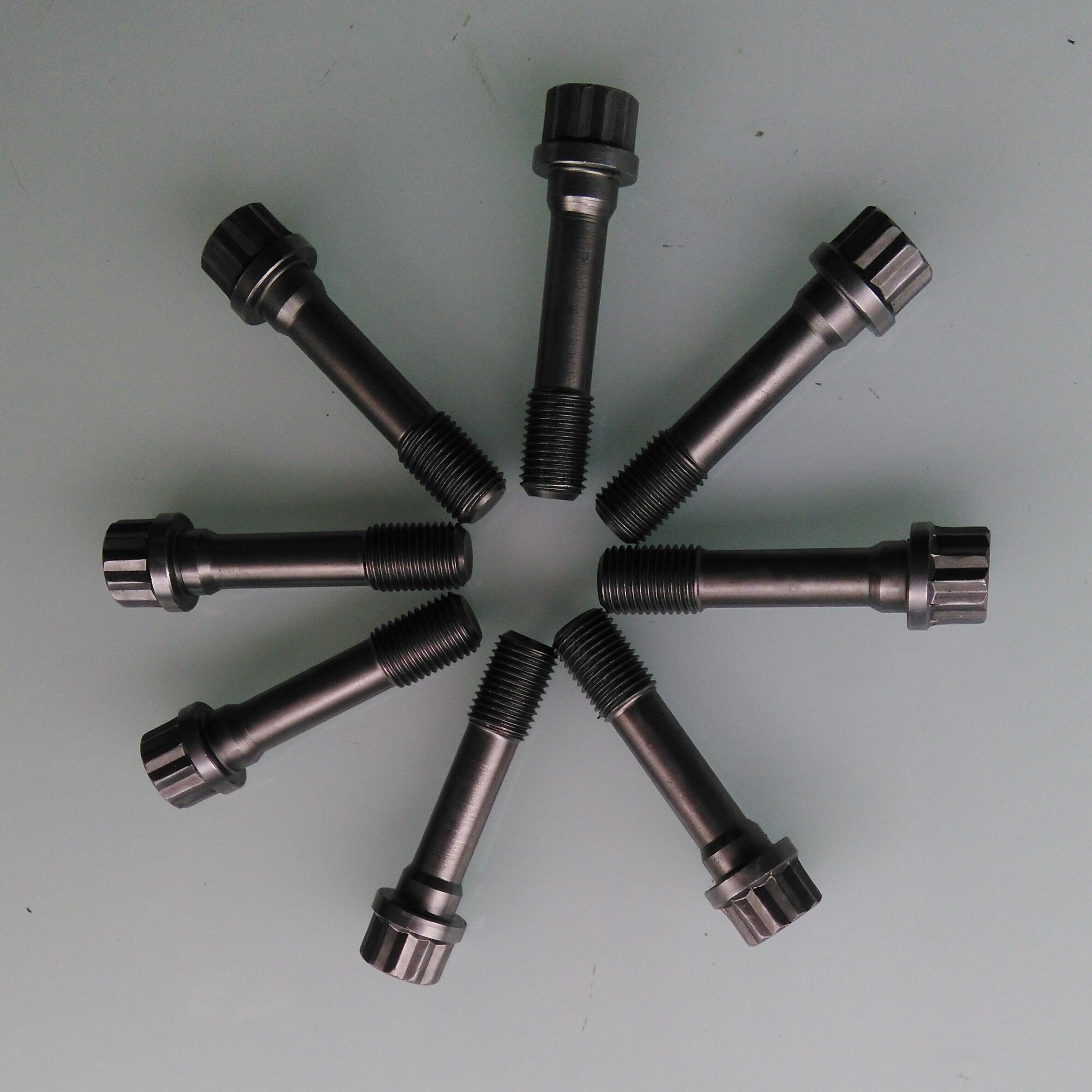

11.Bolts tesile strength with 228,500 psi.
Application | for G60 engine | ||||||
Style number | FVW086 | ||||||
Beam style | H-beam | ||||||
Material | Forged 4340 steel | ||||||
Tolerance | Sets weight match +/-1 gram | ||||||
Quantity | 1 set of 4 pieces | ||||||
Warranty | 1 year | ||||||
Specifications | |||||||
Center to center length | 135.99mm | ||||||
Big end diameter | 50.61mm | ||||||
Small end diameter | 22.01mm | ||||||
Big end width | 24.89mm | ||||||
Small end width | 24.89mm | ||||||
Note: please double check dimensions with seller before purchase |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
